Remote Die Box

Remote Die Box Applications/Categories: Die Protection Systems

Specifications

Part Number: 53-450 Six-Channel Remote Die Box

Includes:

• Individual Channel Indicators: Easily monitor each channel’s status.
• Cable: 45-foot quick-disconnect cable (12 conductor) reduces installation time.
• Power Supply: Provides 24VDC at 2.5 AMP to active sensors.

The six-channel design supports seamless die sensor swaps and ensures reliable power and monitoring for both PNP and NPN configurations.

Cable Pin Assignments

Pin	Wire Color	Description
1	BRN	120VAC L input
2	N/C	Not connected
3	RED	Earth Ground
4	ORG	+24VDC output (from power supply)
5	YEL	+24VDC output (from power supply)
6	GRN	Die #6 output
7	Shield	Case Ground
8	N/C	Not connected
9	BLU	Die #5 output
10	VLT	Ground
11	GRY	Die #2 output
12	WHT	Die #1 output
13	BLK	Die #3 output
14	BK/WT	Die #4 output
15	RD/WT	120VAC N input
16	N/C	Not connected

Enclosure

• Type: NEMA 12, 13, IP54 painted steel (blue)
• Dimensions:
  • Height: 8” (203 mm)
  • Width: 6” (152 mm)
  • Depth: 3.5” (89 mm)

Indicator LEDs

• RED: Indicates PNP sensor status
• GREEN: Indicates NPN sensor status

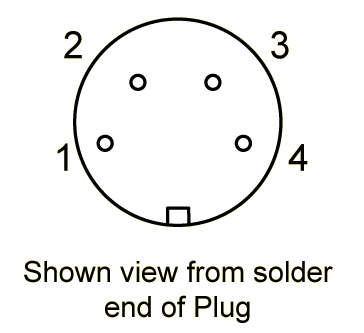

Banana Jack: For passive ground sensors (NPN), jumper Pin 1 to Pin 3 on the female Lumberg receptacle.

Active PNP or NPN Sensors
