In metal stamping operations, maintaining press safety and ensuring metal stamping precision are critical to preventing costly damage and workplace accidents. One of the most effective ways to safeguard equipment, tooling, and operators is through tonnage monitoring, a system that measures and regulates the force exerted by a stamping press. Without accurate monitoring, excessive force can lead to die failure, press damage, and safety hazards that put workers at risk.
By integrating tonnage monitoring, manufacturers gain real-time insights into press operations, allowing them to prevent overload conditions and maintain consistent quality. This technology not only protects equipment but also helps facilities comply with OSHA and ANSI safety standards, reinforcing a safer and more efficient stamping environment.
What Is Tonnage Monitoring and How Does It Work?
Understanding Tonnage in Metal Stamping
Tonnage refers to the amount of force a press applies during the stamping process. Every press has a rated tonnage capacity, which indicates the maximum force it can safely exert without causing damage to the machine or tooling. If this limit is exceeded, critical failures can occur, including:
- Cracked or broken dies
- Misaligned components
- Press frame damage
- Increased operator risk
By implementing press safety solutions like tonnage monitoring, manufacturers can accurately measure and regulate force levels to prevent these issues.
How Tonnage Monitoring Systems Work
A tonnage monitoring system consists of sensors that measure force at key points in the press structure. These sensors collect data in real-time, allowing operators to track force distribution and identify potential problems before they escalate. Most modern systems provide:
- Real-time tonnage readouts for precise monitoring
- Overload alarms to prevent damage
- Data logging capabilities to track long-term performance
- Automatic press shutdown functions when unsafe conditions are detected
Facilities that integrate advanced monitoring systems gain access to customizable safety solutions, helping manufacturers optimize press operations and maintain compliance.
Types of Tonnage Monitoring Sensors
Tonnage monitoring sensors vary depending on the press type and operational needs. Common types include:
- Strain Gauge Sensors: Measure press deformation under load
- Load Cells: Directly measure force at connection points
- Hydraulic Pressure Sensors: Convert hydraulic force readings into tonnage values
Selecting the right sensor is essential for achieving accurate force measurements. Modern systems allow manufacturers to enhance metal stamping operations with real-time force data and predictive maintenance insights.
Why Tonnage Monitoring Is Critical for Press Safety
Preventing Overload Conditions
A tonnage monitoring system helps manufacturers prevent press overload, which can cause irreversible damage to stamping equipment. Overloading occurs when a press applies excessive force beyond its rated capacity, leading to costly repairs and production downtime. Real-time tonnage tracking ensures presses operate within safe force limits, reducing the risk of catastrophic failures.
Protecting Dies and Tooling
Tooling represents a significant investment in metal stamping operations. When tonnage monitoring is not used, excessive force can damage dies, leading to premature wear or complete failure. This results in:
- Unplanned downtime for tool repair or replacement
- Increased production costs due to wasted materials
- Defective parts caused by improper force application
By integrating die protection systems with tonnage monitoring, manufacturers can extend the life of their tooling, maintain consistent part quality, and improve operational efficiency.
Enhancing Operator Safety
Press operators are exposed to high-force machinery that can cause serious injuries if malfunctions occur. Tonnage monitoring contributes to a safer work environment by:
- Detecting irregular force patterns that indicate potential mechanical failures
- Triggering automatic shutdowns when unsafe conditions arise
- Providing visual and audible warnings to alert operators of press overload risks
As part of a comprehensive safety system, tonnage monitoring works in conjunction with brake monitoring, die protection, and programmable limit switches to minimize workplace hazards and improve overall press performance.
How Tonnage Monitoring Improves Metal Stamping Quality
Ensuring Consistent Part Production
Accurate force application is essential for producing high-quality stamped parts. Tonnage monitoring ensures that each press cycle maintains consistent force levels, reducing:
- Variability in part thickness
- Material stress inconsistencies
- Production errors that lead to rework or scrap
With reliable tonnage monitoring solutions, manufacturers can meet customer specifications with greater precision while minimizing material waste.
Reducing Unnecessary Maintenance Costs
Without tonnage monitoring, press components experience uneven stress loads, leading to premature wear and costly maintenance. By tracking tonnage data, maintenance teams can:
- Schedule preventative maintenance before failures occur
- Identify abnormal force readings that indicate mechanical issues
- Reduce unexpected breakdowns, improving overall uptime
Systems such as those from Pressroom Electronics offer data-driven insights, allowing manufacturers to implement predictive maintenance strategies and reduce costly repairs.
Compliance with OSHA and ANSI Safety Standards
Regulatory compliance is a major concern for metal stamping operations. OSHA and ANSI standards require manufacturers to implement press safety measures that protect workers and prevent equipment failures. Tonnage monitoring systems help facilities meet these standards by:
- Providing real-time force tracking to ensure safe press operation
- Logging data for compliance reporting
- Preventing hazardous overload conditions before they occur
With built-in compliance reporting tools, tonnage monitoring solutions simplify audits and reduce liability risks for manufacturers.
Choosing the Right Tonnage Monitoring System
Key Features to Look For
When selecting a tonnage monitoring system, manufacturers should consider:
- Real-time digital displays for accurate monitoring
- Overload alarms to prevent damage
- Data logging capabilities for performance tracking
- Integration with existing press safety controls
Advanced tonnage monitoring solutions enhance both safety and efficiency while integrating seamlessly with existing equipment.

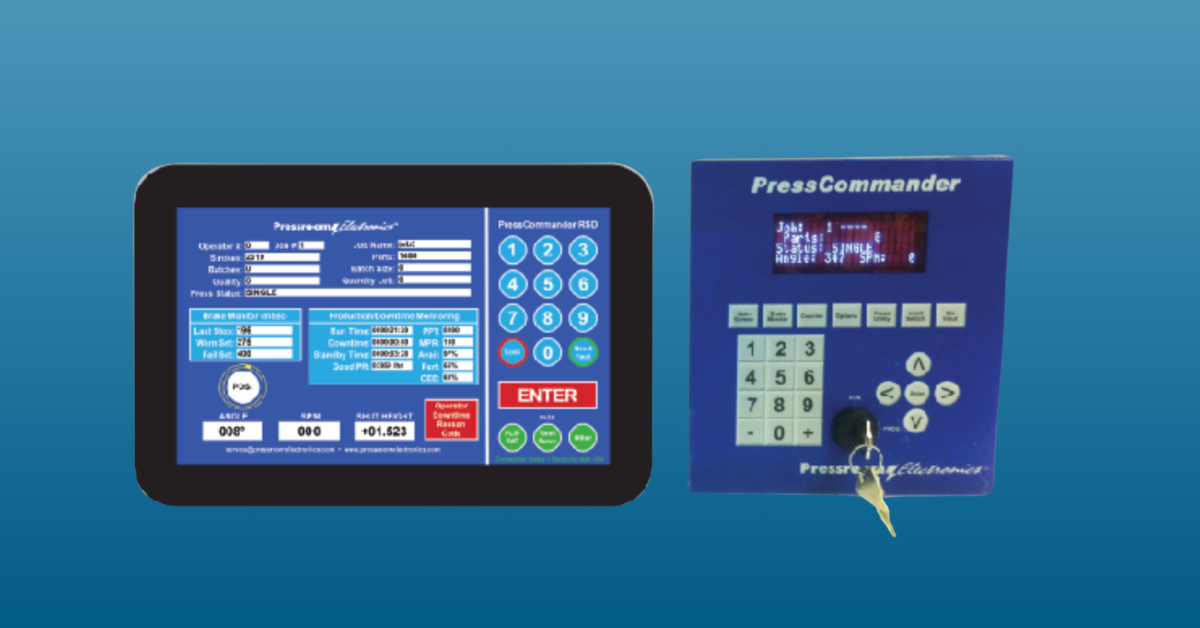

Integration with Pressroom Electronics’ Safety Solutions
Pressroom Electronics offers tonnage monitoring systems that work seamlessly with:
- Die Protection Systems – Prevents tooling damage caused by excessive force
- Programmable Limit Switches – Ensures precise press cycle timing
- Brake Monitoring Systems – Verifies proper stopping performance for press safety
By combining these technologies, manufacturers achieve a fully integrated press safety solution that optimizes productivity while minimizing risk.
Maximizing Press Safety with Tonnage Monitoring
Tonnage monitoring is a vital component of a safe and efficient metal stamping operation. By accurately measuring and regulating press force, manufacturers can prevent overload conditions, protect dies and tooling, and ensure worker safety. Additionally, compliance with OSHA and ANSI standards becomes easier, reducing the risk of regulatory penalties.
With Pressroom Electronics’ advanced solutions, manufacturers can take control of their press operations and create a safer, more efficient work environment. Explore their full range of tonnage monitoring and safety solutions to protect equipment, operators, and overall production quality.
